Types of Lifts/Elevators

Lifts come in various designs and technologies, each suited for different building requirements and purposes:

1. Passenger Lifts
   • Standard Passenger Elevators: These are commonly used in residential and commercial buildings for transporting people. They can be hydraulic or traction-driven.

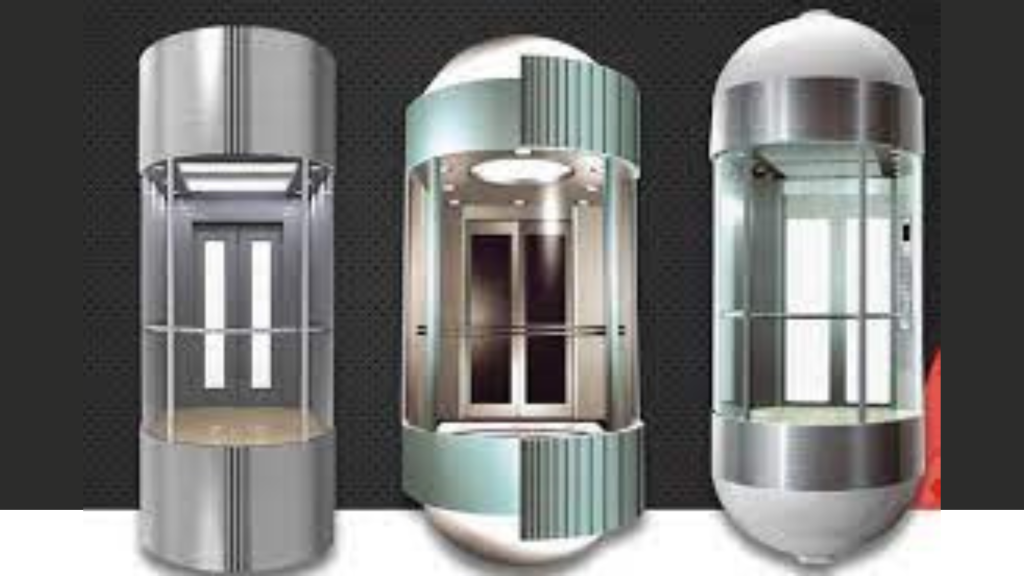

   • Panoramic Lifts: These feature glass walls and are typically used for aesthetic purposes in shopping malls or high-rise buildings, providing a scenic view while traveling.
   • Machine-Room-Less (MRL) Elevators: These elevators do not require a separate machine room, which saves space. They are typically quieter and more energy-efficient than traditional systems.
2. Freight Lifts
   • Goods Lifts: Designed to carry goods and heavy items rather than passengers. They are typically found in warehouses, factories, and large retail stores.
   • Dumbwaiters: Small freight lifts designed for transporting food, dishes, or small items in restaurants or multi-story homes.
3. Service Lifts
   • Hospital Elevators: These are specially designed for use in hospitals and healthcare facilities, often with features like wider doors for stretcher access and specialized floor buttons.
   • Food & Beverage Elevators: Often used in restaurants to transport food from one floor to another quickly and efficiently.
4. Special Purpose Elevators
   • Home Elevators: Small lifts used in private homes, especially in multi-story residences or for individuals with mobility challenges.
   • Inclined Elevators: These move on an incline, usually in areas where space for a vertical elevator is limited, like steep hills or multi-level structures.

Elevator Mechanisms

1. Hydraulic Elevators
   • Mechanism: These use a hydraulic piston (a large vertical piston driven by a pump) to raise and lower the elevator car. The system is powered by oil or another fluid pumped under pressure.
   • Advantages: Smooth ride, simple design, and good for buildings with fewer floors (typically 2-8 stories).
   • Disadvantages: Slower than traction systems, uses more energy for longer lifts, and requires a machine room for the hydraulic pump.
2. Traction Elevators
   • Mechanism: These use a system of ropes or belts, pulleys, and counterweights to move the elevator car. The motor drives the pulley system, which lifts the car and counterweights.
   • Advantages: More energy-efficient than hydraulic systems, especially for taller buildings (usually 10+ stories), and faster ride speeds.
   • Disadvantages: Requires more space (a machine room at the top of the building), and more complex installation.
3. Machine-Room-Less (MRL) Elevators
   • Mechanism: These are a variation of traction elevators where the machine room is located inside the hoistway, rather than being a separate room. It uses a gearless motor directly above the elevator.
   • Advantages: Saves space and is more energy-efficient. MRL elevators are typically quieter and more compact.
   • Disadvantages: Limited capacity compared to traditional traction elevators and may not be suitable for extremely tall buildings.
4. Vacuum Elevators
   • Mechanism: These elevators use air pressure (vacuum) to move the lift car. The cabin is essentially “pulled” up by a vacuum pump, creating a low-pressure area above the cabin.
   • Advantages: No need for cables, pulleys, or counterweights, making them a simpler and more compact design.
   • Disadvantages: Typically only used in residential homes due to their limited capacity and higher initial cost.

Elevator Features and Considerations

1. Safety Features
   • Emergency Brakes: All elevators are equipped with emergency braking systems to prevent free-fall in case of mechanical failure.
   • Backup Power: Elevators are often equipped with backup power to return the elevator to the ground floor in the event of a power failure.
   • Overload Sensors: These sensors detect when an elevator is carrying too much weight and prevent the system from operating if overloaded.
   • Fire Safety: Fire-rated materials are used in the construction of elevator shafts and doors, and elevators are equipped with features to prevent movement during a fire.
2. Accessibility Features
   • Wheelchair Access: Elevators for public buildings often have wider doors, lower control panels, and smooth operation to accommodate individuals with disabilities.
   • Voice Announcements: These are especially important in public elevators, providing auditory cues about the floor number and direction of travel.
   • Braille Keypads: Braille is used on elevator control panels for visually impaired users.
3. Aesthetic and Design Features
   • Interior Design: Elevators often feature customized interiors, including lighting, flooring, and wall materials to match the building’s aesthetic.
   • Smart Technology: Modern elevators can be integrated with building management systems to provide predictive maintenance, optimize performance, and monitor energy usage.
4. Speed and Efficiency
   • Travel Speed: The speed of an elevator depends on the type of lift and the building’s height. For example, standard passenger elevators travel between 1 to 2 meters per second, while high-speed elevators in skyscrapers can reach speeds of up to 10 meters per second.
   • Elevator Grouping: In high-rise buildings, multiple elevators are grouped together and controlled by a central system to optimize efficiency and reduce waiting times.

Elevator Maintenance

1. Routine Inspections: Regular inspections are crucial for ensuring the safety and proper functioning of an elevator. This includes checking the cables, brakes, doors, and emergency systems.
2. Preventive Maintenance: Regular lubrication of moving parts, checking the safety systems, and updating the software in more modern elevators.
3. Repairs and Upgrades: Over time, parts wear out or become outdated. Elevators may require replacement of components, software upgrades, or complete system overhauls, especially in older buildings.
4. Modernization: In older buildings, elevator systems may be outdated or inefficient. Elevator modernization involves updating mechanical and electronic systems, improving performance, and enhancing safety and energy efficiency.

Elevator Regulations

Elevators must comply with local building codes, safety standards, and regulations, which vary depending on the region. Some of the widely recognized standards include:

• ASME A17.1 (North America)
• EN 81 (European Union)
• ISO 25745 (International Standards for Energy Performance)

Elevator Technology Trends

1. Smart Elevators: These systems are equipped with sensors, cloud computing, and AI to improve ride efficiency, predict maintenance needs, and offer contactless operation.
2. Green Elevators: Designed to be more energy-efficient and reduce the carbon footprint, including regenerative drives that recover energy and use it to power other building systems.
3. Destination Dispatch: This system uses advanced algorithms to group passengers traveling to similar floors, reducing waiting times and improving elevator efficiency.
4. Touch less and Voice-Activated Elevators: Post-pandemic, there’s an increased focus on reducing physical contact with elevator buttons, leading to the development of touch less or voice-activated systems.
